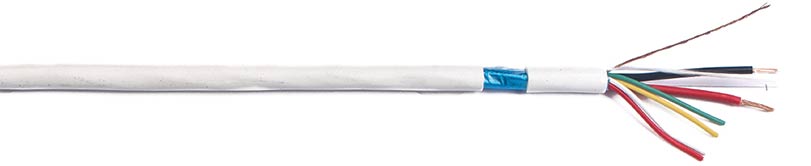

| Construction |
|
| Conductor |
Flexible bare Cu class 5, CEI EN 60228 |
| Insulation |
PVC TI2 quality, CEI EN 50363 |
| Tape |
PET |
| Shield |
Al/PET + drain wire |
| Sheath |
PVC TM2 quality white RAL9003, CE EN 50363 |
| Printing |
SUD CAVI – ALARM CABLE CEI 20-22 II CEI UNEL 36762 C-4 (Uo=400V) WW/YR [ORDER NR] 001M – Eca |
| Electrical properties |
|
| Nominal voltage |
Uo/U=300/500V |
| Test voltage |
2000V |
| Operating temperature |
-10°C +70°C |
| Rules |
| CEI 20-22 II / CEI EN 60332-1-2,CEI UNEL 36762 C-4 (Uo=400V) – CE – EN 50575:2014/A1:16 |
| Item Number |
Section mm² |
Diameter mm. |
Weight Kg/Km |
| AS222 |
2X0,22 |
3.20 |
14.00 |
| AS422 |
4X0,22 |
3.50 |
20.00 |
| AS622 |
6X0,22 |
4.30 |
24.00 |
| AS822 |
8X0,22 |
4.50 |
35.00 |
| AS1022 |
10X0,22 |
5.20 |
40.00 |
| AS1222 |
12X0,22 |
5.40 |
48.00 |
| AS2022 |
20X0,22 |
7.20 |
83.00 |
| AS5222 |
2X0,50+2X0,22 |
4.20 |
27.00 |
| AS5422 |
2X0,50+4X0,22 |
4.60 |
36.00 |
| AS5622 |
2X0,50+6X0,22 |
5.30 |
44.00 |
| AS5822 |
2X0,50+8X0,22 |
5.40 |
50.00 |
| AS51022 |
2X0,50+10X0,22 |
5.70 |
58.00 |
| AS51222 |
2X0,50+12X0,22 |
6.00 |
62.00 |
| AS7222 |
2X0,75+2X0,22 |
4.50 |
38.00 |
| AS7422 |
2X0,75+4X0,22 |
4.90 |
44.00 |
| AS7622 |
2X0,75+6X0,22 |
5.40 |
52.00 |
| AS7822 |
2X0,75+8X0,22 |
6.00 |
58.00 |
| AS71022 |
2X0,75+10X0,22 |
6.20 |
62.00 |
| AS71222 |
2X0,75+12X0,22 |
6.50 |
66.00 |
